RGT 136100PRO parameter information:

• Model: 136100PRO
• Scale: 1/10 electric off-road vehicle
• Drive mode: four-wheel drive mode
• Gear ratio: 37/1
• Gear: steel
• Girder: carbon fiber
• Motor/ESC: FOC integrated machine
• Motor: 2200kv
• ESC: 30A
• Steering servo: digital metal gear 15KG
• Wheelbase: 275mm
• Length: 420mm
• Width: 210mm
• Height: 200mm
• Wheels (diameter/width): 105/38mm
• Longitudinal passing angle: 26°
• Approach angle: 74°
• Departure angle: 69°
• Ground clearance: 68mm (chassis), 40mm (bridge box)
• Longitudinal passing angle: 29°
• Car weight: 1.69KG (excluding battery)
• BEC output: 7.4V/3A
• Available battery size: 77MM*35MM*28MM
• Remote control/receiver: "FS" 2.4G/6CH
• Battery: Support/2-3S Lipo, 6-9 Cells NiMH

Why introduce RGT 136100PRO to everyone?

RGT 136100PRO is a 1/10Mini high-performance climbing car designed by the RGT design team specifically for the Haoying Fusion mini16 brushless all-in-one machine. RGT 136100PRO is a popular LCG low-center-of-gravity structure model.The newly designed frame focuses on a lightweight positioning. 75% of the frame is made of CNC aluminum alloy parts and lightweight aluminum V-shaped pull rods.100% all-carbon fiber lightweight beam, CNC aluminum integrated axle, brass servo seat.The total weight of the frame and the shell is 1.7KG (excluding batteries). There is still enough space for players to make counterweights later.The car adopts a transmission system, front motor distribution, and a 6/4 weight ratio design for the front and rear of the frame. In order to maximize the climbing performance of the car, the height of the car body is reduced as much as possible.RGT 136100PRO uses a simulated car shell, which is optimized in both approach and departure angles. The passing performance of the car is greatly improved. RGT 136100PRO is equipped with a brushless power F0C electric motor integrated machine, 30A electric motor, and 2200KV brushless motor.The inner rotor magnetic field oriented control drive mode has strong low-speed torque and superb linear output, and the motor runs smoothly and quietly, with excellent IP67 waterproof and dustproof performance, which can easily cope with various climates and site environments.RGT 136100PRO is available in two colors when it leaves the factory, one is a lively and cute pink car shell with a pink metal axle, and the other is a metallic blue car shell with a stable black metal axle.

What are the characteristics and functions of each part of the RGT 136100PRO RC CAR vehicle?

RGT 136100PRO's body structure

1. RGT 136100PRO 2.5mm thick carbon fiber beam, 4.5mm diameter solid aluminum connecting rod, CNC6061 aluminum one-piece straight bridge with rearward tilt angle design.
2. The front steering shaft adopts steel #1144CVA design, 46 degrees ultra-large steering angle, bringing a smaller turning radius.
3. RGT 136100PRO bridge servo structure, brass servo seat, aluminum hexagonal wheel seat, 25T metal servo arm.

Reduction system

1. RGT 136100PROLCG low center of gravity structure, 6/4 weight ratio of the frame front and rear, and the reducer adopts metal gears with #45 steel reduction shaft.
2. RGT 136100PRO steel central drive shaft, CNC aluminum gearbox base and motor fixing plate.

30A2200KV all-in-one FOC power system

1. The integrated design of the RGT 136100PRO electric motor greatly reduces the overall size and weight, making the frame layout and wiring more concise and convenient.
2. Powerful low-speed torque and excellent low-speed linearity. The motor runs more quietly and smoothly.
3. The RGT 136100PRO power protection level is IP67, with excellent waterproof and dustproof performance, and can easily cope with various climates and site environments.
4. Intelligent torque output and speed closed-loop control bring the cruise control and steep slope descent functions enjoyed by real cars.
5. RGT 136100PRO has multi-level drag brake force adjustment, and the maximum drag brake force is about twice that of ordinary brushless power, providing super slope parking ability.
6. Multiple protection functions: battery low voltage protection, overheating protection, throttle loss protection, and stall protection.
7. RGT 136100PRO supports LED setting box to set ESC parameters, and has an independent parameter setting interface integrated on the switch, making parameter setting more convenient.

Tie rod

1. RGT 136100PRO 4.5mm diameter solid aluminum 8-link structure.
2. RGT 136100PRO tie rod ball head adopts new formula reinforced nylon material, which is more resistant to friction and not easy to deform.

Suspension and wheels

1. RGT 136100PRO suspension system adopts CNC aluminum alloy coilover hydraulic shock absorber, coilover shock absorber brings more convenient damping adjustment.
2. RGT 136100PRO tire adopts butyl rubber formula, 105mm diameter MT tire, universal 1.9-inch retro electroplated wheel hub, better climbing grip and durability

Shell design

1. RGT 136100PRO shell adopts 1.2mm thick PC soft shell, environmentally friendly spray paint with transparent windows, flip cover hidden shell pillar design.

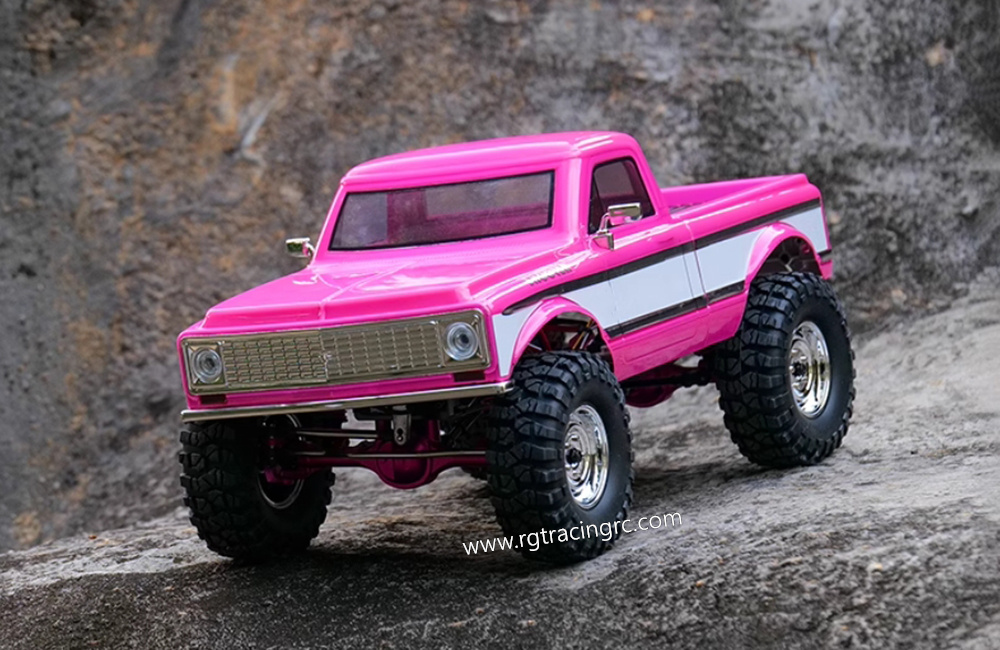

2. RGT 136100PRO is equipped with LED headlights, rearview mirrors, door handles and other plastic decorations, and is available in two colors (pink, metallic blue)

Electronic equipment

1. RGT 136100PRO will be available to consumers in a 90% RTR manner, equipped with a brushless power FOC electric motor integrated system.
2. RGT 136100PRO 15KG metal gear servo, "FS" 6-channel 2.4G remote control, and the electric control supports 2-3S lithium battery use.

Summary

RGT 136100PRO 1/10 climbing car RC remote control off-road car four-wheel drive simulation model, lightweight design, low center of gravity structure, strong brushless power system, flexible control, high simulation, and high cost performance.
